Custom Paddle and Spectacle Blinds' Specs

General Capabilities

Build to Print
Material Recommendations
CAD Design
Engineering Assistance
Computerized Reverse Engineering
PMI Services

Primary Capabilities

Waterjet Cutting
Laser Cutting

Types

API 590 & Stamped w/ Size and Pressure Class
API Standard
Custom

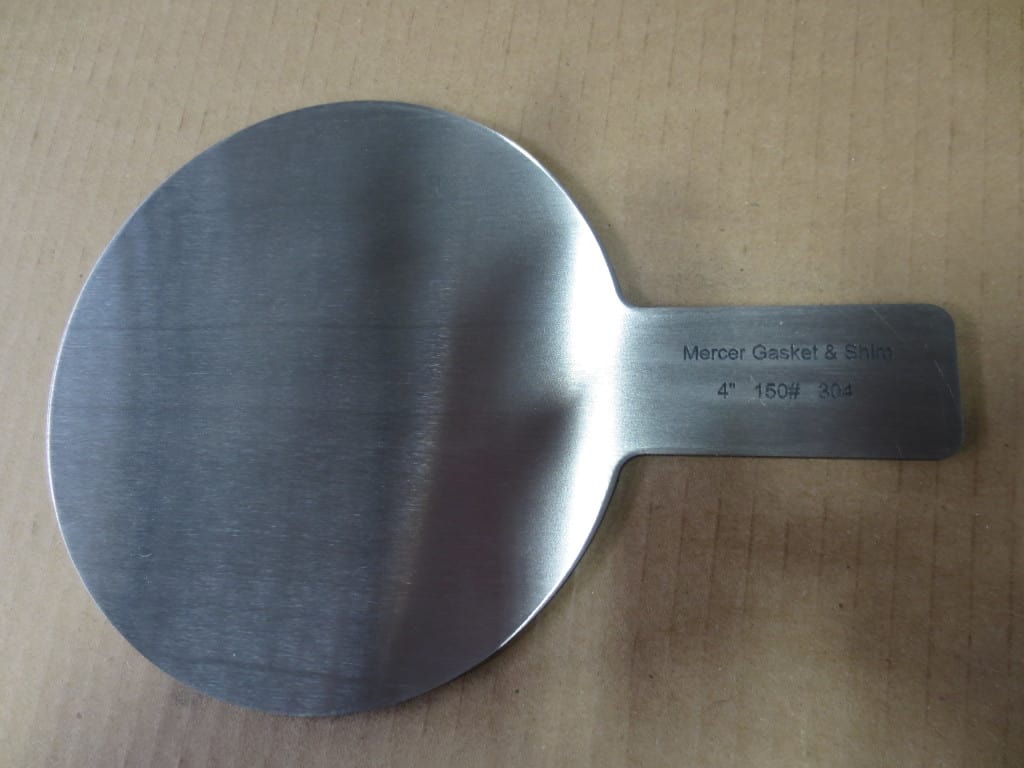

Paddle Blinds
Spectacle Blinds
Paddle Blanks
Paddle Spacers
With Gaskets

Materials

Carbon Steel
Stainless Steel
Monel
Inconel
Titanium
Brass
Copper

Cutting Thickness

Max: 4 in / 101.6 mm

Cutting Length

Max: 144 in / 3654.6 mm

Cutting Width

Max: 144 in / 3654.6 mm

Tolerance (+/-)

Max: .002 in / .0508 mm

Production Volume

Production Volume Prototype
Low Volume
Small Run

Lead Times Available

Expedited Services Available
Next Day Services
24 Hour Service

Additional Information

Industry Focus

Chemical
Fitting
Refining
Process Piping
Power Generation
Valve

Industry Standards

ANSI American National Standards Institute
ASME American Society of Mechanical Engineers
ASTM American Society for Testing and Materials
DOT Department of Transportation
FDA Food And Drug Administration
ISO 9001:2008 International Organization for Standardization
Mil-Spec Military Specifications
RoHS Restriction Of Hazardous Substances (Compliant)

File Formats

AutoCAD (DWG,DXF)
JPG or JEPG Joint Photographic Experts Group
PDF Portable Document Format
TIFF Tagged Image File Format
