Exhaust Sealing Solutions
Facing a critical exhaust sealing challenge?
Mercer Gasket & Shim delivers precision-engineered sealing solutions for exhaust systems, whether you need a single emergency replacement for Maintenance, Repair, and Operations (MRO) or high-volume production for Original Equipment Manufacturers (OEMs). Backed by decades of experience serving diverse industries where managing high-heat emissions and backpressure is paramount, we have the expertise and advanced manufacturing capabilities to meet your exact specifications for exhaust sealing.
Ready to discuss your exhaust sealing requirement? Contact us today! Keep reading to learn more about the industries we serve and the sealing solutions we provide, or call us and speak with a sealing expert. Ready to send an RFQ?
Industries Served
Exhaust systems are the vital discharge pathways of combustion and industrial processes, and their seals are critical for containing toxic gases, managing extreme heat, and protecting downstream components.
- Oil and Gas: Large-scale compression engines and power generation units at midstream sites require robust exhaust manifolds. High-integrity seals are critical for preventing gas leaks and ensuring safe operation in volatile environments where surface temperatures must be strictly controlled.
- Power Generation: Gas turbines and reciprocating engines rely on exhaust seals to manage massive thermal expansion. Specialized gaskets are essential for withstanding constant thermal cycling and preventing energy-robbing leaks in heat recovery steam generators (HRSGs).
- Marine: Marine propulsion and auxiliary engines operate in confined, high-vibration spaces. Exhaust seals in this environment must be highly resistant to thermal shock and capable of maintaining a seal against the corrosive effects of salt air and moisture.
- Mining and Heavy Equipment: Off-highway vehicles operate under extreme loads, generating intense exhaust heat. Resilient seals are necessary to withstand vibration and structural stress, ensuring operational continuity in the most demanding earth-moving applications.
- Chemical Processing: Exhaust flues manage the byproduct of high-temperature reactions and incinerators. Reliable seals prevent the escape of corrosive or hazardous vapors, ensuring environmental compliance and worker safety.
- Manufacturing: Industrial furnaces, ovens, and kilns require precise exhaust management to maintain process temperatures. Effective seals prevent heat loss that could lead to system inefficiency and inconsistent product quality.
- Automotive and Transportation: From commercial trucking to performance racing, exhaust seals manage the transition from headers to catalytic converters. High-performance gaskets are vital for preventing “blow-by“ and ensuring emissions systems function at peak efficiency.

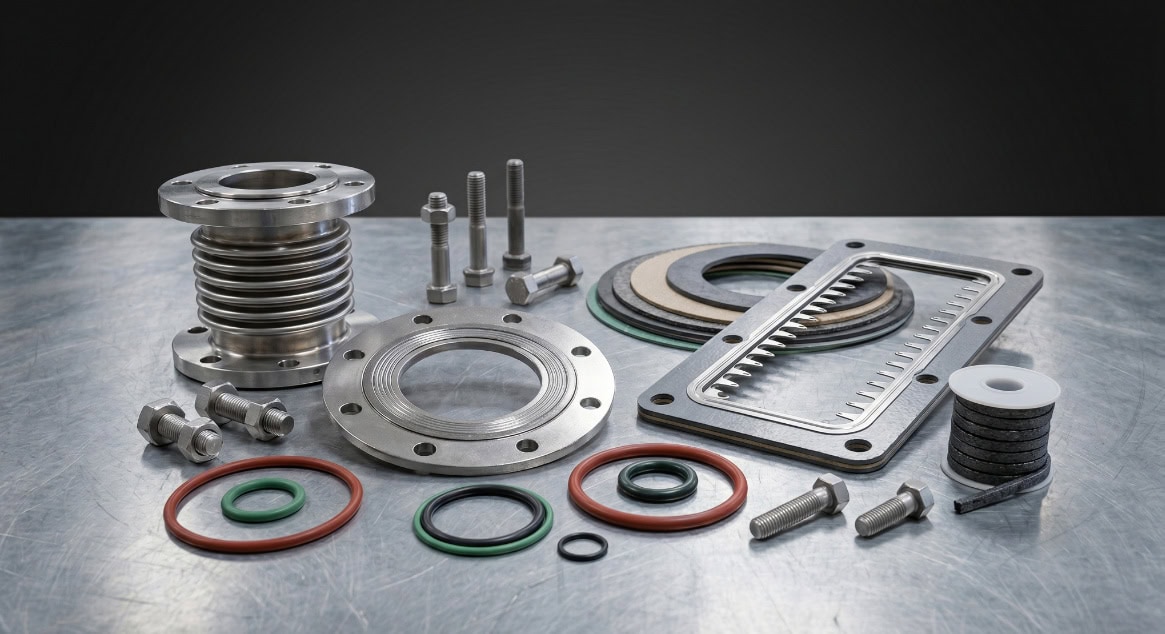

Core Categories of Exhaust Solutions
| Solution Type | Mechanism | Best For… |
| Manifold Gaskets | Multi-layer steel or composite gaskets that seal the engine block to the exhaust header. | High-vibration, high-heat engine head connections. |
| Flange Gaskets | Heavy-duty rings or full-face gaskets compressed between exhaust pipe segments. | Standard industrial exhaust piping and turbocharger mounts. |
| Expansion Joints | Flexible bellows that absorb thermal growth and vibration. | Long exhaust runs and large-scale power generation ducts. |
| Collector Gaskets | High-density seals designed for the high-pressure merge point of exhaust headers. | Performance engines and high-flow industrial discharge. |
| Heat Shields & Wraps | Thermal barriers that contain radiant heat within the exhaust stream. | Protecting sensitive electronics and reducing ambient cabin heat. |
Commonly Used Sealing Solutions for Exhausts
Reinforced Graphite Gaskets
Why: Graphite is naturally resistant to extreme heat (up to 450°C in oxidizing atmospheres and much higher in non-oxidizing environments). When reinforced with a metal core (tanged or foil), these gaskets offer excellent conformability for warped or uneven exhaust surfaces.
Where: A staple for MRO repairs on older industrial engines and heavy machinery where flange surfaces may not be perfectly flat.
Spiral Wound Gaskets
Why: Designed for high-pressure exhaust transitions, these gaskets utilize a V-shaped metallic winding with a non-metallic filler. They provide exceptional resilience and recovery under fluctuating thermal loads.
Where: Used primarily in turbine exhausts and high-pressure industrial flue gas systems.
Factors Influencing Exhaust Sealing Selection
The choice of a sealing solution for an exhaust application is dictated by the aggressive nature of combustion byproducts and thermal physics:
- Extreme Operating Temperatures: Exhaust gases can reach temperatures well exceeding 700°C. We prioritize materials like Inconel, 321 Stainless Steel, and High-Purity Graphite that won’t degrade or lose their seal force at peak heat.
- Thermal Expansion (CTE): As exhaust components heat up, they grow significantly. Our solutions account for the Coefficient of Thermal Expansion, ensuring the seal can slide or flex without shearing or losing compression.
- Vibration and Harmonic Stress: Exhaust systems are subject to constant mechanical vibration. We select gaskets with high recovery rates to ensure they stay tight even as the system shakes during operation.
- Corrosion and Oxidation Resistance: Combustion byproducts (like sulfur oxides) can be highly corrosive. We utilize alloys and coatings that resist oxidation and scaling, extending the lifespan of the connection.
- Backpressure Requirements: A leaking exhaust seal can disrupt the pressure balance required for turbochargers or emissions equipment. We ensure a zero-leak seal to maintain engine efficiency and emissions compliance.
Mercer’s experienced team considers all of the above to provide expert guidance in exhaust sealing solution selection. We help you manage the heat and contain the flow, ensuring your systems remain safe and efficient. Whether for high-volume OEM production or critical MRO replacements, we have the material science to handle the heat. Contact the Mercer team or send us your RFQ today!
